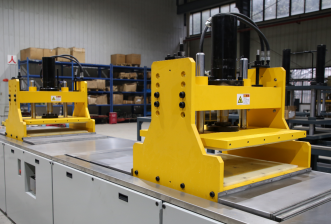

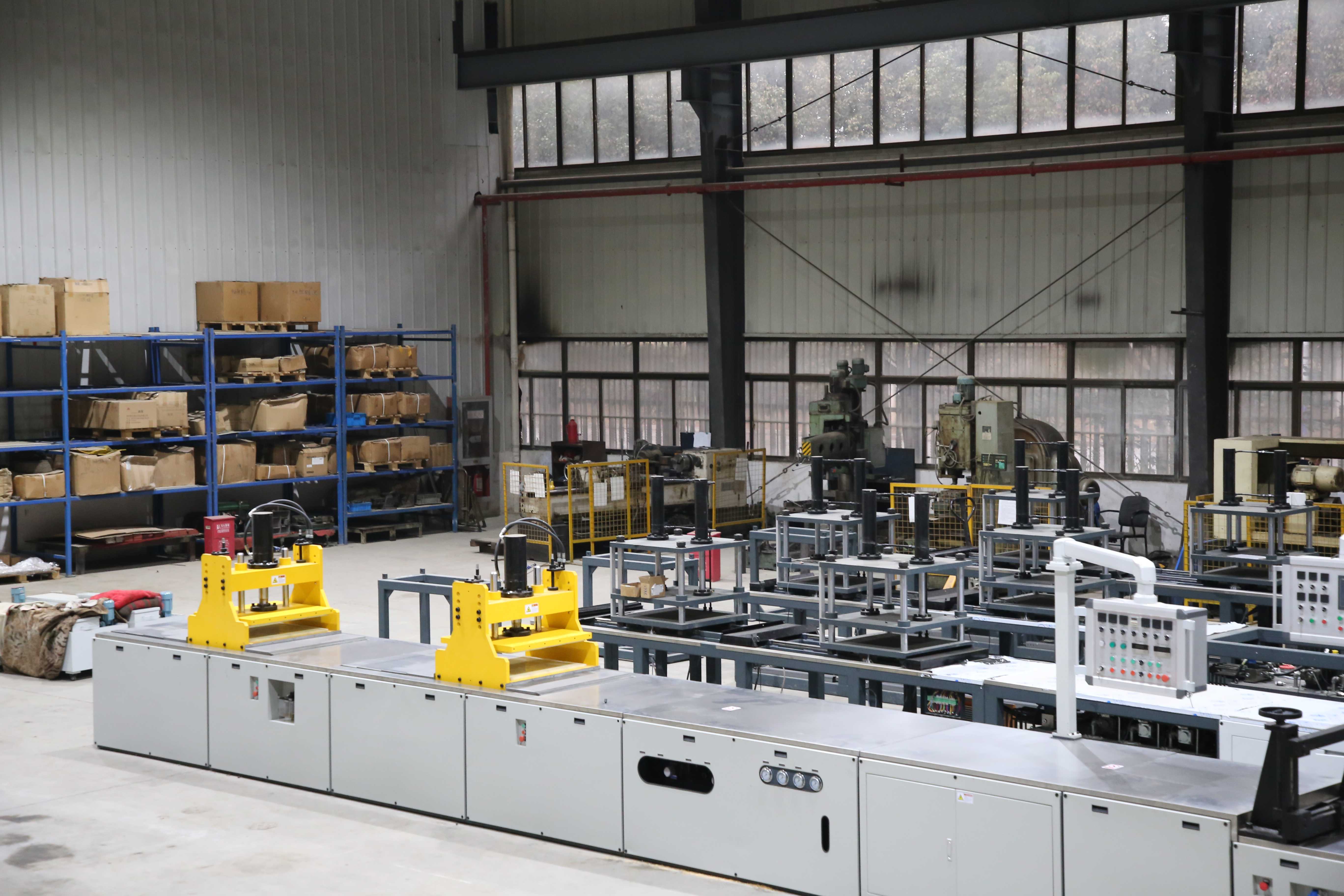

Servo-control Hydraulic Pultrusion Machine | High-Quality & Cost-Effective
The Hydromatic Pultrusion Machine is designed for high-speed production, which allows for a large volume of composite material to be produced quickly and efficiently.
The machine is designed to maintain precise control over the temperature, speed, and pressure of the pultrusion process, which ensures that each piece of composite material produced is consistent in its properties and quality.
Produce composite materials with a wide range of geometries and cross-sectional shapes, making it a versatile tool for manufacturing complex parts.
The composite materials produced by the Hydromatic Pultrusion Machine have a high strength-to-weight ratio, which makes them ideal for applications where weight reduction and high strength are critical.
The machine is designed to minimize material waste, and the high-speed production process reduces labor costs and energy consumption, making it a cost-effective solution for producing composite materials.
| Model | HL SYLJ-20T | HL SYLJ-30T | HL SYLJ-40T |
| Max.Pulling Force（Ton） | 20 | 30 | 40 |
| Max.Clamping Force（Ton） | 20 | 30 | 30 |
| Pulling Speed（m/min） | 0.05-0.4 | 0.05-0.4 | 0.05-0.4 |
| 0.15-1.2 | 0.15-1.2 | 0.15-1.2 | |
| Max. Clamping Space | 760×350mm | 1000×400mm | 1200×500mm |
| Hydraulic Motor Power（KW） | 2.9KW×2+5.5KW=11.3KW | 5.5KW×3=16.5KW | 7.9KW×2+5.5KW=21.3KW |
| Heating Power（KW） | 3KW×6=18KW | 3KW×8=24KW | 3KW×10=30KW |
| Temperature Range For Die Heating（℃） | 0-250℃ | 0-250℃ | 0-250℃ |
| Max.Hydraulic System Operating Pressure | 13MPa | 13MPa | 13MPa |
| Temperature Control Precision（℃） | ±1℃ | ±1℃ | ±1℃ |
| Electric Control Mode | HMI and PLC and Servo Drive | ||
| Temperature Control Mode | Intelligent Temperature Control Gauge and Solid State Relay | ||
| Overall Dimensions | 9950×1140×1980 | 10800×1460×2100 | 11200×1680×2200 |
| (L×W×H)(mm) | |||
| Machine Weight（Ton） | 6 | 8 | 13 |
